ACL’s on NCS5500 BVI Interfaces
Introduction
In the previous article, we introduced the ACL enhancements on NCS5500 based on J2 chipsets. Now we will understand the ACL implementation on NCS5500 w.r.t to BVI interfaces. We will cover all the systems based on J/J+ and J2.
Quick Recap: Bridged Virtual Interface - BVI

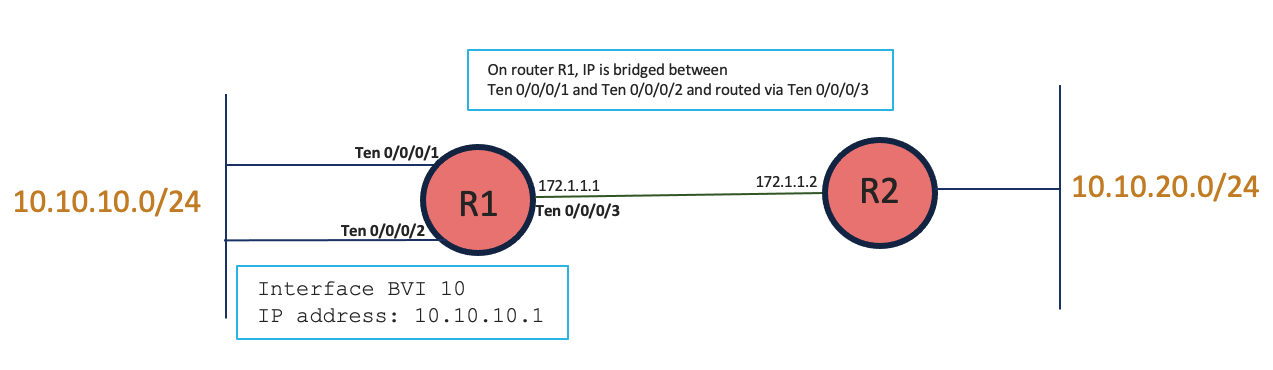

Before we move to the ACL features, let us do a quick recap of the BVI interface and understand its use cases. The BVI is a virtual interface within the router that acts like a normal routed interface. BVI provides link between the bridging and the routing domains on the router. The BVI does not support bridging itself, but acts as a gateway for the corresponding bridge-domain to a routed interface within the router. Bridge-Domain is a layer 2 broadcast domain. It is associated to a bridge group using the routed interface bvi command. Reference
BVI use cases
- Interconnect bridged and routed networks
- Preserve network addresses
- Bridge local traffic for efficient network performance
BVI provides a much more flexible solution for bridging and routing
| Scenarios | Supported by BVI |
|---|---|
| Communication of multiple interfaces in same BD | Yes |
| Communication of multiple interfaces in different BD | Yes |
| Communication between Bridged interface and Routed interface | Yes |
ACLs with BVI interface
Configuration and attachment of an ACL over BVI interface is similar to regular ACLs attachment to a physical interface. Let us check out the same.
Ingress V4 ACL
- First we will start with Ingress IPv4 ACL.
- IPv4 ACL is supported in ingress direction for J/J+ and J2 (Native and Compatible mode).
RP/0/RP0/CPU0:5508-2-74142I-C#show platform
Node Type State Config state
--------------------------------------------------------------------------------
0/3/CPU0 NC57-18DD-SE IOS XR RUN NSHUT
0/3/NPU0 Slice UP
0/3/NPU1 Slice UP
0/4/CPU0 NC55-36X100G-A-SE IOS XR RUN NSHUT
0/4/NPU0 Slice UP
0/4/NPU1 Slice UP
0/4/NPU2 Slice UP
0/4/NPU3 Slice UP
0/7/CPU0 NC55-24X100G-SE IOS XR RUN NSHUT
0/7/NPU0 Slice UP
0/7/NPU1 Slice UP
0/7/NPU2 Slice UP
0/7/NPU3 Slice UP
Note: Output is truncated
We will consider 3 Line cards.
| Line Card | No of NPU’s |
|---|---|
| NC57-18DD-SE | 2xJ2 |
| NC55-36X100G-A-SE | 4xJ+ |
| NC55-24X100G-SE | 4xJ |
We have ingress IPv4 ACL configured as below and applied to BVI interface
ipv4 access-list permit-stats
10 permit ipv4 25.1.7.0 0.0.0.255 any
20 deny ipv4 26.1.7.0 0.0.0.255 any
30 permit ipv4 host 50.1.1.1 any
35 deny ipv4 62.6.69.128 0.0.0.15 any
40 deny ipv4 any 62.80.66.128 0.0.0.15
45 deny ipv4 62.80.66.128 0.0.0.15 any
50 deny ipv4 any 62.134.38.0 0.0.0.127
60 permit tcp any eq bgp host 1.2.3.1
70 permit tcp any host 1.2.3.1 eq bgp
80 deny ipv4 any host 1.2.3.1
90 deny ipv4 any 212.21.217.0 0.0.0.255
100 permit ipv4 any any
RP/0/RP0/CPU0:5508-2-74142I-C#show running-config interface bvI 21
interface BVI21
ipv4 access-group permit-stats ingress
!
BVI configurations
interface FourHundredGigE0/3/0/21
l2transport
!
!
l2vpn
bridge group BVI
bridge-domain 21
interface FourHundredGigE0/3/0/21
!
routed interface BVI21
!
!
Verification
RP/0/RP0/CPU0:5508-2-74142I-C#show access-lists ipv4 usage pfilter location all
Interface : BVI21
Input ACL : Common-ACL : N/A ACL : permit-stats
Output ACL : N/A
TCAM Programming for ingress ACLs on BVI interfaces
BVI interfaces are designed in such a way that every feature attachment affects all NPUs on the Line Card. TCAM entries are always programmed across all LCs, regardless of interface membership. This is platform independent and should behave the same across all XR platforms. When it comes to the individual line card level, TCAM entries are programmed across all NPUs on the particular line card, regardless of interface membership.
To understand this behaviour, we need to recap what we discussed in the earlier section w.r.t BVI. BVI has no mapping to a particular Physical port / LC. BVI is rather an entity of Bridge Domain. In XR, BVI has been defined globally just as a Bridge Domain. Hence it is present on all LCs. Another important consideration for this implementation is modification of the configurations. If we want to add or remove BVI entries in each LC dynamically - based on the presence of a local AC (from that LC) in the given BD it has a lot of overhead. Hence we allocate resources on all the NPU’s of the LCs and also from PI perspective we replicate that on all LCs.
RP/0/RP0/CPU0:5508-2-74142I-C#show controllers npu externaltcam location 0/3/CPU0
External TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 15 320b 4081 15 2725 ext_FG_INGR_V4_ACL
1 15 320b 4081 15 2725 ext_FG_INGR_V4_ACL
RP/0/RP0/CPU0:5508-2-74142I-C#
Note: Output is truncated
TCAM entries on other LCs
RP/0/RP0/CPU0:5508-2-74142I-C#show controllers npu internaltcam location 0/4/CPU0
Internal TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
1 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
2 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
3 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
RP/0/RP0/CPU0:5508-2-74142I-C#
Note: Output is truncated
RP/0/RP0/CPU0:5508-2-74142I-C#show controllers npu internaltcam location 0/7/CPU0
Internal TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
1 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
2 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
3 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
RP/0/RP0/CPU0:5508-2-74142I-C#
Note: Output is truncated
From the above outputs, we could see the replication is happening on all the LCs in the system and all the NPUs on each LC. Note that the programming of the ingress traditional ACLs is happening on the external TCAM for a LC based on J2 (same as normal L3 interface) and on the internal TCAM for LCs based on J/J+. TCAM resources are used even if the LCs are not part of that particular BVI or BD.
Ingress V6 ACL
Let us verify the behaviour with the IPv6 Ingress ACLs.
RP/0/RP0/CPU0:5508-2-74142I-C#show access-lists ipv6 ipv6_1
ipv6 access-list ipv6_1
10 permit tcp 2001:1:2::/64 any eq 1024
20 permit tcp 2002:1:2::/64 any eq 1024
30 permit tcp 2003:1:2::/64 any eq 1024
40 permit tcp 2004:1:2::/64 any eq 1024
50 deny udp 2001:4:5::/64 any lt 1000
60 permit ipv6 any any
Verification
RP/0/RP0/CPU0:5508-2-74142I-C#show running-config interface bvI 21
interface BVI21
ipv6 access-group ipv6_1 ingress
!
TCAM entries on all the LCs
RP/0/RP0/CPU0:5508-2-74142I-C#show controllers npu externaltcam location 0/3/CPU0
External TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 12 480b 1998 50 2722 ext_FG_INGR_V6_ACL
1 12 480b 1998 50 2722 ext_FG_INGR_V6_ACL
RP/0/RP0/CPU0:5508-2-74142I-C#
RP/0/RP0/CPU0:5508-2-74142I-C#show controllers npu internaltcam location 0/4/CPU0
Internal TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 6\7 320b pmf-0 2025 23 48 INGRESS_ACL_L3_IPV6
1 6\7 320b pmf-0 2025 23 48 INGRESS_ACL_L3_IPV6
2 6\7 320b pmf-0 2025 23 48 INGRESS_ACL_L3_IPV6
3 6\7 320b pmf-0 2025 23 48 INGRESS_ACL_L3_IPV6
RP/0/RP0/CPU0:5508-2-74142I-C#
RP/0/RP0/CPU0:5508-2-74142I-C#show controllers npu internaltcam location 0/7/CPU0
Internal TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 6\7 320b pmf-0 2025 23 48 INGRESS_ACL_L3_IPV6
1 6\7 320b pmf-0 2025 23 48 INGRESS_ACL_L3_IPV6
2 6\7 320b pmf-0 2025 23 48 INGRESS_ACL_L3_IPV6
3 6\7 320b pmf-0 2025 23 48 INGRESS_ACL_L3_IPV6
RP/0/RP0/CPU0:5508-2-74142I-C#
Note: Output is truncated
We see the same behaviour in terms of programming and TCAM resource utilization when it comes to IPv6 ingress ACLs as well. IPv6 ACL is supported in ingress direction for J/J+ and J2 (Native and Compatible mode)
Egress V4 ACL
By default, Egress ACLs over BVI interface is disabled. ACL filtering will not take effect even after it is attached to BVI interfaces. To enable ACL over BVI in the egress direction, hw-module profile acl egress layer3 interface-based should be configured. When we enable the above profile, egress ACLs on any non BVI interface will not work. This limitation is because, we have different qualifiers for physical interfaces and BVI interfaces. To accomodate both qualifiers, we need to increase the key size and we need more memory banks. IPv4 ACL is supported in Egress direction for J/J+ and J2 (Native and Compatible mode).
Similar to the ingress ACLs, TCAM entries are always programmed across all LCs, regardless of interface membership. When it comes to the individual line card level, TCAM entries are programmed across all NPUs on the particular line card, regardless of interface membership. In order to activate/deactivate Egress ACL support over BVI interfaces, you must manually reload the chassis/all line cards.
Verification
RP/0/RP0/CPU0:5508-2-741C#show running-config | in hw-module
hw-module profile acl egress layer3 interface-based
RP/0/RP0/CPU0:5508-2-741C#show running-config interface bvI 21
interface BVI21
ipv4 access-group permit-stats egress
RP/0/RP0/CPU0:5508-2-741C#show access-lists ipv4 usage pfilter location all
Interface : BVI21
Input ACL : N/A
Output ACL : permit-stats
TCAM Programming for egress ACLs on BVI interfaces
RP/0/RP0/CPU0:5508-2-741C#show controllers npu internaltcam location 0/3/CPU0
Mon Sep 13 05:13:38.674 PDT
Internal TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 5 160b EPMF 2031 15 42 EGRESS_ACL_IPV4
1 5 160b EPMF 2031 15 42 EGRESS_ACL_IPV4
RP/0/RP0/CPU0:5508-2-741C#
Note: Output is truncated
TCAM entries on other LCs
RP/0/RP0/CPU0:5508-2-741C#show controllers npu internaltcam location 0/7/CPU0
Internal TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 0 160b egress_acl 2016 15 30 EGRESS_ACL_IPV4
1 0 160b egress_acl 2016 15 30 EGRESS_ACL_IPV4
2 0 160b egress_acl 2016 15 30 EGRESS_ACL_IPV4
3 0 160b egress_acl 2016 15 30 EGRESS_ACL_IPV4
RP/0/RP0/CPU0:5508-2-741C#
Note: Output is truncated
RP/0/RP0/CPU0:5508-2-741C#show controllers npu internaltcam location 0/4/CPU0
Internal TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 0 160b egress_acl 2016 15 30 EGRESS_ACL_IPV4
1 0 160b egress_acl 2016 15 30 EGRESS_ACL_IPV4
2 0 160b egress_acl 2016 15 30 EGRESS_ACL_IPV4
3 0 160b egress_acl 2016 15 30 EGRESS_ACL_IPV4
RP/0/RP0/CPU0:5508-2-741C#
Note: Output is truncated
Failure of egress ACLs on non BVI interfaces
RP/0/RP0/CPU0:5508-2-741C(config)#interface bundle-ether 30
RP/0/RP0/CPU0:5508-2-741C(config-if)#ipv4 access-group permit-stats egress
RP/0/RP0/CPU0:5508-2-741C(config-if)#commit
% Failed to commit one or more configuration items during a pseudo-atomic operation. All changes made have been reverted. Please issue 'show configuration failed [inheritance]' from this session to view the errors
RP/0/RP0/CPU0:5508-2-741C(config-if)#show configuration failed
Mon Sep 13 04:50:14.667 PDT
!! SEMANTIC ERRORS: This configuration was rejected by
!! the system due to semantic errors. The individual
!! errors with each failed configuration command can be
!! found below.
interface Bundle-Ether30
ipv4 access-group permit-stats egress
!!% 'DPA' detected the 'warning' condition 'SDK - Invalid configuration'
!
end
From the above, we can see that non BVI interface will not allow the egress IPv4 ACL when hw-module profile acl egress layer3 interface-based is configured.
Egress V6 ACL
Till now we could see, the TCAM utilizations of the v4 ACLs in ingress and egress is same for platforms based on J/J+ and J2. It was same for the ingress v6 ACLs as well. The main difference is in the implementation of the Egress V6 ACL. Egress IPv6 ACLs on BVI interfaces is not supported on platforms based on J/J+. This is due to the absence of the qualifiers needed for the egress support. It is supported on the J2 based platforms only in the Native mode. When IPv6 Egress ACL is configured, all non-J2 cards reject it. Therefore when implementing the egress IPv6 ACLs on BVI interfaces, the chassis should not be operating in compatible mode.
Verification
Let us see what happens when we apply the IPv6 Egress ACL on BVI interface for a J2 based Line card in a chassis operating in compatible mode.
RP/0/RP0/CPU0:5508-2-741C(config)#interface bvI 21
RP/0/RP0/CPU0:5508-2-741C(config-if)#ipv6 access-group ipv6_1 egress
RP/0/RP0/CPU0:5508-2-741C(config-if)#commit
% Failed to commit one or more configuration items during a pseudo-atomic operation. All changes made have been reverted. Please issue 'show configuration failed [inheritance]' from this session to view the errors
RP/0/RP0/CPU0:5508-2-741C(config-if)#show configuration failed
!! SEMANTIC ERRORS: This configuration was rejected by
!! the system due to semantic errors. The individual
!! errors with each failed configuration command can be
!! found below.
interface BVI21
ipv6 access-group ipv6_1 egress
!!% 'pfilter-ea' detected the 'warning' condition 'Egress ACL not supported on this interface type.'
!
end
RP/0/RP0/CPU0:5508-2-741C(config-if)#
We can see the configuration is rejected. We have system based on J2 Native Mode. Let us try configuring it the IPv6 ACL in the egress direction on the BVI interface
RP/0/RP0/CPU0:NC57B1-5DSE-1-Vega-II5-5#show platform
Node Type State Config state
--------------------------------------------------------------------------------
0/RP0/CPU0 NCS-57B1-5DSE-SYS(Active) IOS XR RUN NSHUT
0/PM0 PSU2KW-ACPI OPERATIONAL NSHUT
0/PM1 PSU2KW-ACPI OPERATIONAL NSHUT
0/FT0 N5700-FAN OPERATIONAL NSHUT
0/FT1 N5700-FAN OPERATIONAL NSHUT
0/FT2 N5700-FAN OPERATIONAL NSHUT
0/FT3 N5700-FAN OPERATIONAL NSHUT
0/FT4 N5700-FAN OPERATIONAL NSHUT
0/FT5 N5700-FAN OPERATIONAL NSHUT
RP/0/RP0/CPU0:NC57B1-5DSE-1-Vega-II5-5#
interface BVI1
ipv6 access-group ipv6_1 egress
!
RP/0/RP0/CPU0:NC57B1-5DSE-1-Vega-II5-5#show access-lists ipv6 usage pfilter lo$
Interface : BVI1
Input ACL : N/A
Output ACL : ipv6_1
RP/0/RP0/CPU0:NC57B1-5DSE-1-Vega-II5-5#
RP/0/RP0/CPU0:NC57B1-5DSE-1-Vega-II5-5#show controllers npu internaltcam locat$
Internal TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 4\5 320b EPMF 2030 18 35 EGRESS_ACL_IPV6
RP/0/RP0/CPU0:NC57B1-5DSE-1-Vega-II5-5#
From the above output, we can see that Egress IPv6 ACL on BVI interface got accepted on the system with J2 Native Mode.
TCAM entries with multiple interfaces having ACLs
- For ingress ACLs, TCAM entries can be shared between different interfaces in case of same ACL.
- For egress ACLs, TCAM entries are unique per interface, even for the same ACL.
- Let us verify the same.
Ingress
interface BVI21
ipv4 access-group permit-stats ingress
!
interface BVI36
ipv4 access-group permit-stats ingress
!
RP/0/RP0/CPU0:5508-2-741C#
RP/0/RP0/CPU0:5508-2-741C#show access-lists ipv4 usage pfilter location all
Interface : BVI21
Input ACL : Common-ACL : N/A ACL : permit-stats
Output ACL : N/A
Interface : BVI36
Input ACL : Common-ACL : N/A ACL : permit-stats
Output ACL : N/A
RP/0/RP0/CPU0:5508-2-741C#
RP/0/RP0/CPU0:5508-2-741C#show controllers npu externaltcam location 0/3/CPU0
External TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 15 320b 4081 15 2725 ext_FG_INGR_V4_ACL
1 15 320b 4081 15 2725 ext_FG_INGR_V4_ACL
RP/0/RP0/CPU0:5508-2-741C#
Note: Output is truncated
RP/0/RP0/CPU0:5508-2-741C#show controllers npu internaltcam location 0/4/CPU0
Internal TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
1 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
2 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
3 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
RP/0/RP0/CPU0:5508-2-741C#
Note: Output is truncated
RP/0/RP0/CPU0:5508-2-741C#show controllers npu internaltcam location 0/7/CPU0
Internal TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
1 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
2 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
3 2 160b pmf-0 2023 16 47 INGRESS_ACL_L3_IPV4
RP/0/RP0/CPU0:5508-2-741C#
Note: Output is truncated
Egress
interface BVI21
ipv4 access-group permit-stats egress
!
interface BVI36
ipv4 access-group permit-stats egress
!
RP/0/RP0/CPU0:5508-2-741C#show access-lists ipv4 usage pfilter location all
Interface : BVI21
Input ACL : N/A
Output ACL : permit-stats
Interface : BVI36
Input ACL : N/A
Output ACL : permit-stats
RP/0/RP0/CPU0:5508-2-741C#
RP/0/RP0/CPU0:5508-2-741C#show controllers npu internaltcam location 0/3/CPU0
Internal TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 5 160b EPMF 2016 30 42 EGRESS_ACL_IPV4
1 5 160b EPMF 2016 30 42 EGRESS_ACL_IPV4
RP/0/RP0/CPU0:5508-2-741C#
RP/0/RP0/CPU0:5508-2-741C#show controllers npu internaltcam location 0/4/CPU0
Internal TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 0 160b egress_acl 2001 30 30 EGRESS_ACL_IPV4
1 0 160b egress_acl 2001 30 30 EGRESS_ACL_IPV4
2 0 160b egress_acl 2001 30 30 EGRESS_ACL_IPV4
3 0 160b egress_acl 2001 30 30 EGRESS_ACL_IPV4
RP/0/RP0/CPU0:5508-2-741C#
RP/0/RP0/CPU0:5508-2-741C#show controllers npu internaltcam location 0/7/CPU0
Internal TCAM Resource Information
=============================================================
NPU Bank Entry Owner Free Per-DB DB DB
Id Size Entries Entry ID Name
=============================================================
0 0 160b egress_acl 2001 30 30 EGRESS_ACL_IPV4
1 0 160b egress_acl 2001 30 30 EGRESS_ACL_IPV4
2 0 160b egress_acl 2001 30 30 EGRESS_ACL_IPV4
3 0 160b egress_acl 2001 30 30 EGRESS_ACL_IPV4
RP/0/RP0/CPU0:5508-2-741C#
From the above outputs we can see that for egress ACLs on the BVI interface we do not share the TCAM entries. They are unique per interface. Whereas in the ingress direction, we share the TCAM entries if we apply the same ACL.
Summary
Summarizing the ACL support on BVI interfaces.
| ACL Direction | J | J+ | J2 Compatible | J2 Native |
|---|---|---|---|---|
| Ingress v4 ACL | Yes | Yes | Yes | Yes |
| Ingress v6 ACL | Yes | Yes | Yes | Yes |
| Egress v4 ACL | Yes | Yes | Yes | Yes |
| Egress v6 ACL | No | No | No | Yes |
We saw the support and programming of the ingress and egress ACLs on the BVI interfaces along with the TCAM resource utilization. In the next article we will explore the v6 ACLs in more details and its implementation across the chipsets. So stay tuned !!!
Leave a Comment
