Cisco 8000 FIB Scale for Silicon One P100
Introduction
Similarly to the work done on Cisco 8000 running Silicon One Q100 and Q200 ASIC, this article aims to document and demonstrate FIB scale and capabilities for Cisco 8000 routers running Silicon One P100 ASIC.
This article is applicable to the following products:
- Cisco 8711-32FH-M: 12.8Tbps router, with MACsec
- Cisco 8212-48FH-M: 19.2Tbps router, with MACsec
- Cisco 88-LC1-36EH: 28.8Tbps LC, without MACsec
- Cisco 88-LC1-12TH24FH-E: 12Tbps LC, without MACsec
- Cisco 88-LC1-52Y8H-EM: 3.7Tbps LC, with MACsec
Silicon One P100 FIB
The FIB structure and implementation is similar to Silicon One Q100 and Q200 ASIC. The main difference is the LPM scale.

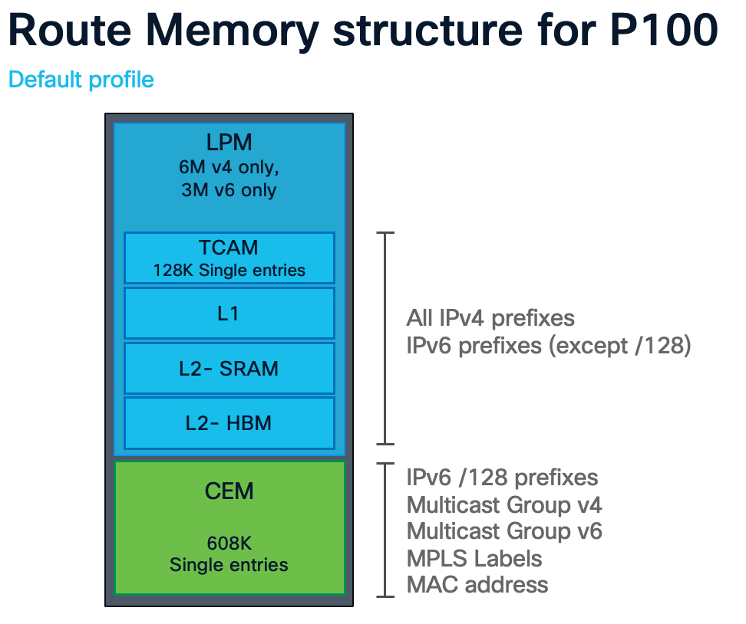

Courtesy CS Lee, Cisco Live 8000 Techtorial
The maximum unidimensional numbers are 6M IPv4 routes OR 3M IPv6 routes. This of course can vary depending on the prefixes distribution. All IPv4 and IPv6 routes are installed into a hierarchical LPM (Longest Prefix Match) database, apart from IPv6 host routes (IPv6 /128) which are installed into the CEM (Central Exact Match) database. It’s interesting to note unlike Q200, there is no hw-module profile or knob required to reach such scale.
Info: The numbers provided and tested are without FIB compression and are raw LPM scale capabilities.
FIB Scale Testing Methodology
The methodology used for this 2024-2025 run is similar to the previous tests executed. An up-to date BGP routing table is used from the RouteViews project. Latest forecast from APNIC are also used to simulate BGP growth.
Customer Case Study
To make this exercise even more realistic, following customer case study is presented in this article and a comparison is made with previous generation of Silicon One platforms.
- Customer profile: Satellite Internet Service Provider
- FIB profile: Internet routes + POD subscribers
- Current number of subscribers per POD: 300k
- Subscriber route profile: 1 x IPv4 /32 + 1 x IPv6 /64 + 1 x IPv6 /56 per subscriber
Internet Baseline
Internet routes are first replayed on the DUT using routem (a Cisco internal tool to generate routes).
IPv4 configuration:
tme@8000-TME-Jump-Server:~/routem$ cat customerX-v4-to-8711-32FH-M
router bgp 65001
bgp_id 1.63.51.21
neighbor 1.63.51.70 remote-as 65537
neighbor 1.63.51.70 update-source 1.63.51.21
capability ipv4 unicast
capability refresh
capability 4bytes-as
replay file route-view-v4.cfg.198.58.198.252_AS1403_4byte ascii
IPv6 configuration:
tme@8000-TME-Jump-Server:~/routem$ cat customerX-v6-to-8711-32FH-M
router bgp 65001
bgp_id 1.63.51.21
neighbor 2001:db8:1337:0:1:63:51:70 remote-as 65537
neighbor 2001:db8:1337:0:1:63:51:70 update-source 2001:db8:1337:0:1:63:51:21
capability ipv6 unicast
capability refresh
capability 4bytes-as
replay file route-view-v6.cfg.2606:6d00:eb0::252_AS1403_4byte ascii
tme@8000-TME-Jump-Server:~/routem$
We can see following prefixes distribution corresponds to a true Internet feed:
RP/0/RP0/CPU0:Saturn-8711-32FH-M#sh cef summary
Fri Oct 18 14:52:14.438 UTC
Router ID is 0.0.0.0
IP CEF with switching (Table Version 0) for node0_RP0_CPU0
Load balancing: L4
Tableid 0xe0000000 (0x9affeae8), Vrfid 0x60000000, Vrid 0x20000000, Flags 0x1019
Vrfname default, Refcount 951072
951032 routes, 0 protected, 0 reresolve, 2 unresolved (2 old, 0 new), 205423344 bytes
951005 rib, 0 lsd, 22 aib, 0 internal, 2 interface, 4 special, 1 default routes
Prefix masklen distribution:
unicast: 21 /32, 582514 /24, 98490 /23, 111485 /22, 51552 /21, 43442 /20
24282 /19, 13634 /18, 8189 /17, 13157 /16, 2058 /15, 1171 /14
576 /13, 295 /12, 91 /11, 36 /10, 16 /9 , 16 /8
1 /0
RP/0/RP0/CPU0:Saturn-8711-32FH-M#sh cef ipv6 summary
Fri Oct 18 14:13:07.926 UTC
Router ID is 0.0.0.0
IP CEF with switching (Table Version 0) for node0_RP0_CPU0
Load balancing: L4
Tableid 0xe0800000 (0x9b663270), Vrfid 0x60000000, Vrid 0x20000000, Flags 0x1019
Vrfname default, Refcount 208377
208360 routes, 0 protected, 0 reresolve, 0 unresolved (0 old, 0 new), 45005760 bytes
208350 rib, 0 lsd, 3 aib, 0 internal, 0 interface, 6 special, 1 default routes
Prefix masklen distribution:
unicast: 4 /128, 1 /64 , 96033 /48 , 5938 /47 , 4172 /46 , 2742 /45
19242 /44 , 1148 /43 , 2466 /42 , 1251 /41 , 20255 /40 , 1644 /39
2139 /38 , 1219 /37 , 7874 /36 , 1515 /35 , 4493 /34 , 4537 /33
25131 /32 , 334 /31 , 613 /30 , 5336 /29 , 150 /28 , 21 /27
20 /26 , 11 /25 , 33 /24 , 7 /23 , 6 /22 , 3 /21
13 /20 , 1 /19 , 1 /16 , 1 /10 , 1 /0
multicast: 1 /128, 1 /104, 3 /16
This matches current Internet table: roughly 1M IPv4 and 200k IPv6 prefixes. Same for distribution.
With those Internet prefixes, current FIB utilization is 19%:
RP/0/RP0/CPU0:Saturn-8711-32FH-M#sh controllers npu resources lpmtcam location 0/RP0/CPU0
Fri Oct 18 14:53:04.786 UTC
HW Resource Information
Name : lpm_tcam
Asic Type : P100
NPU-0
OOR Summary
Estimated Max Entries : 100
Red Threshold : 95 %
Yellow Threshold : 80 %
OOR State : Green
High Water Mark : 28
High Water Mark Time : 2024.Oct.18 13:48:25 UTC
Current Hardware Usage
Name: lpm_tcam
Estimated Max Entries : 100
Total In-Use : 19 (19 %)
OOR State : Green
High Water Mark : 28
High Water Mark Time : 2024.Oct.18 13:48:25 UTC
Name: v4_lpm
Total In-Use : 951047
High Water Mark : 1249305
High Water Mark Time : 2024.Oct.18 08:56:24 UTC
Name: v6_lpm
Total In-Use : 208365
High Water Mark : 808365
High Water Mark Time : 2024.Oct.18 13:48:25 UTC
Name: v6_shortening_lpm
Total In-Use : 0
Subscribers’ routes addition
Extra routes associated to the 300k subscribers are advertised, meaning:
- 300k extra IPv4 /32 are advertised.
- 300k extra IPv6 /64 and /56 are advertised.
Giving following distribution:
RP/0/RP0/CPU0:Saturn-8711-32FH-M#sh cef summary
Fri Oct 18 14:59:36.196 UTC
Router ID is 0.0.0.0
IP CEF with switching (Table Version 0) for node0_RP0_CPU0
Load balancing: L4
Tableid 0xe0000000 (0x9affeae8), Vrfid 0x60000000, Vrid 0x20000000, Flags 0x1019
Vrfname default, Refcount 1251072
1251032 routes, 0 protected, 0 reresolve, 2 unresolved (2 old, 0 new), 270223344 bytes
1251005 rib, 0 lsd, 22 aib, 0 internal, 2 interface, 4 special, 1 default routes
Prefix masklen distribution:
unicast: 300021 /32, 582514 /24, 98490 /23, 111485 /22, 51552 /21, 43442 /20
24282 /19, 13634 /18, 8189 /17, 13157 /16, 2058 /15, 1171 /14
576 /13, 295 /12, 91 /11, 36 /10, 16 /9 , 16 /8
1 /0
broadcast: 4 /32
multicast: 1 /24, 1 /4
Similarly for IPv6, 2 x 300k are now observed:
RP/0/RP0/CPU0:Saturn-8711-32FH-M#sh cef ipv6 summary
Fri Oct 18 15:00:00.232 UTC
Router ID is 0.0.0.0
IP CEF with switching (Table Version 0) for node0_RP0_CPU0
Load balancing: L4
Tableid 0xe0800000 (0x9b663270), Vrfid 0x60000000, Vrid 0x20000000, Flags 0x1019
Vrfname default, Refcount 808377
808360 routes, 0 protected, 0 reresolve, 0 unresolved (0 old, 0 new), 174605760 bytes
808350 rib, 0 lsd, 3 aib, 0 internal, 0 interface, 6 special, 1 default routes
Prefix masklen distribution:
unicast: 4 /128, 300001 /64 , 300000 /56 , 96033 /48 , 5938 /47 , 4172 /46
2742 /45 , 19242 /44 , 1148 /43 , 2466 /42 , 1251 /41 , 20255 /40
1644 /39 , 2139 /38 , 1219 /37 , 7874 /36 , 1515 /35 , 4493 /34
4537 /33 , 25131 /32 , 334 /31 , 613 /30 , 5336 /29 , 150 /28
21 /27 , 20 /26 , 11 /25 , 33 /24 , 7 /23 , 6 /22
3 /21 , 13 /20 , 1 /19 , 1 /16 , 1 /10 , 1 /0
multicast: 1 /128, 1 /104, 3 /16
This FIB aims to represent a close and realistic representation of the customer role, with 300k subscribers. Under those conditions, FIB utilization is 30%:
RP/0/RP0/CPU0:Saturn-8711-32FH-M#sh controllers npu resources lpmtcam location 0/RP0/CPU0
Fri Oct 18 15:00:32.340 UTC
HW Resource Information
Name : lpm_tcam
Asic Type : P100
NPU-0
OOR Summary
Estimated Max Entries : 100
Red Threshold : 95 %
Yellow Threshold : 80 %
OOR State : Green
High Water Mark : 30
High Water Mark Time : 2024.Oct.18 14:57:55 UTC
Current Hardware Usage
Name: lpm_tcam
Estimated Max Entries : 100
Total In-Use : 30 (30 %)
OOR State : Green
High Water Mark : 30
High Water Mark Time : 2024.Oct.18 14:57:55 UTC
Name: v4_lpm
Total In-Use : 1251047
High Water Mark : 1251047
High Water Mark Time : 2024.Oct.18 14:57:55 UTC
Name: v6_lpm
Total In-Use : 808365
High Water Mark : 808365
High Water Mark Time : 2024.Oct.18 13:48:25 UTC
Name: v6_shortening_lpm
Total In-Use : 0
Simulating 5Y Internet growth
Customer says it has plans to expand by 2025 and the number of subscribers will dramatically increase. This has several consequences for their FIB in the future:
- Rise of IPv4 /32
- Rise of IPv6 /64 and /56
- Rise of Internet table
For the later, we will simulate Internet table growth using RIPE growth projections and make following assumptions based on this study:
- IPv4 will decline: decision is to use same number of IPv4 routes as of today
- IPv6 will be continue to grow: we’ll use 535k IPv6 as an Internet target.
The extra 335k IPv6 routes are injected to follow a realistic Internet distribution:
tme@8000-TME-Jump-Server:~/routem$ cat 2029_customerX-v6-to-8201-32FH
router bgp 65001
bgp_id 1.63.51.21
neighbor 2001:db8:1337:0:1:63:51:70 remote-as 65537
neighbor 2001:db8:1337:0:1:63:51:70 update-source 2001:db8:1337:0:1:63:51:21
capability ipv6 unicast
capability refresh
capability 4bytes-as
replay file IPv6-2023.2406:840:feed:2::1_AS3.12698_4byte ascii
network 1 2406:2d40::/64 300000
network 2 2a0d:3344::/56 300000
network 3 2001:8c00::/48 180000
network 4 2001:8d00::/32 49350
network 5 2001:8e00::/44 26320
network 6 2001:8f00::/40 23030
network 7 2001:9f00::/36 75000
What this test gives is the 5Y Internet table, still with 300k subscribers: LPM utilization is 35%.
RP/0/RP0/CPU0:Saturn-8711-32FH-M#sh controllers npu resources lpmtcam location 0/RP0/CPU0
Fri Oct 18 15:02:49.136 UTC
HW Resource Information
Name : lpm_tcam
Asic Type : P100
NPU-0
OOR Summary
Estimated Max Entries : 100
Red Threshold : 95 %
Yellow Threshold : 80 %
OOR State : Green
High Water Mark : 35
High Water Mark Time : 2024.Oct.18 15:02:25 UTC
Current Hardware Usage
Name: lpm_tcam
Estimated Max Entries : 100
Total In-Use : 35 (35 %)
OOR State : Green
High Water Mark : 35
High Water Mark Time : 2024.Oct.18 15:02:25 UTC
Name: v4_lpm
Total In-Use : 1251047
High Water Mark : 1251047
High Water Mark Time : 2024.Oct.18 14:57:55 UTC
Name: v6_lpm
Total In-Use : 1162054
High Water Mark : 1162054
High Water Mark Time : 2024.Oct.18 15:02:25 UTC
Name: v6_shortening_lpm
Total In-Use : 0
Simulating subscribers growth
The next step is to simulate subscribers growth, from 300k to the maximum possible, using the same subscribers routes distribution (1 x IPv4 /32, 1 x IPv6 /64, 1 x IPv6 /56). Results are the following:
| FIB Profile | LPM Utilization |
|---|---|
| Internet 2029 + 300k subscribers | 35% |
| Internet 2029 + 600k subscribers | 46% |
| Internet 2029 + 900k subscribers | 59% |
| Internet 2029 + 1.5M subscribers | 87% |
While extra prefixes could be generated and platform could scale higher, the increase will be marginal and OOR Red level (95%) would be hit. Cisco doesn’t recommend running systems in production under those conditions.
RP/0/RP0/CPU0:Saturn-8711-32FH-M#sh controllers npu resources lpmtcam location 0/RP0/CPU0
Fri Oct 18 15:34:39.205 UTC
HW Resource Information
Name : lpm_tcam
Asic Type : P100
NPU-0
OOR Summary
Estimated Max Entries : 100
Red Threshold : 95 %
Yellow Threshold : 80 %
OOR State : Yellow
OOR State Change Time : 2024.Oct.18 15:29:27 UTC
High Water Mark : 87
High Water Mark Time : 2024.Oct.18 15:32:55 UTC
Current Hardware Usage
Name: lpm_tcam
Estimated Max Entries : 100
Total In-Use : 87 (87 %)
OOR State : Yellow
OOR State Change Time : 2024.Oct.18 15:29:27 UTC
High Water Mark : 87
High Water Mark Time : 2024.Oct.18 15:32:55 UTC
Name: v4_lpm
Total In-Use : 2462049
High Water Mark : 2462049
High Water Mark Time : 2024.Oct.18 15:33:25 UTC
Name: v6_lpm
Total In-Use : 3562054
High Water Mark : 3562054
High Water Mark Time : 2024.Oct.18 15:29:55 UTC
Name: v6_shortening_lpm
Total In-Use : 0
At 87% LPM utilization, the multi dimensional FIB scale is 2.5M IPv4 + 3.5M IPv6 prefixes.
Silicon One Q200 and P100 comparison
To conclude this article, test was also executed on Cisco 8000 Q200 based platforms (with FIB expansion knob) to compare the improvement made between the 2 generations:

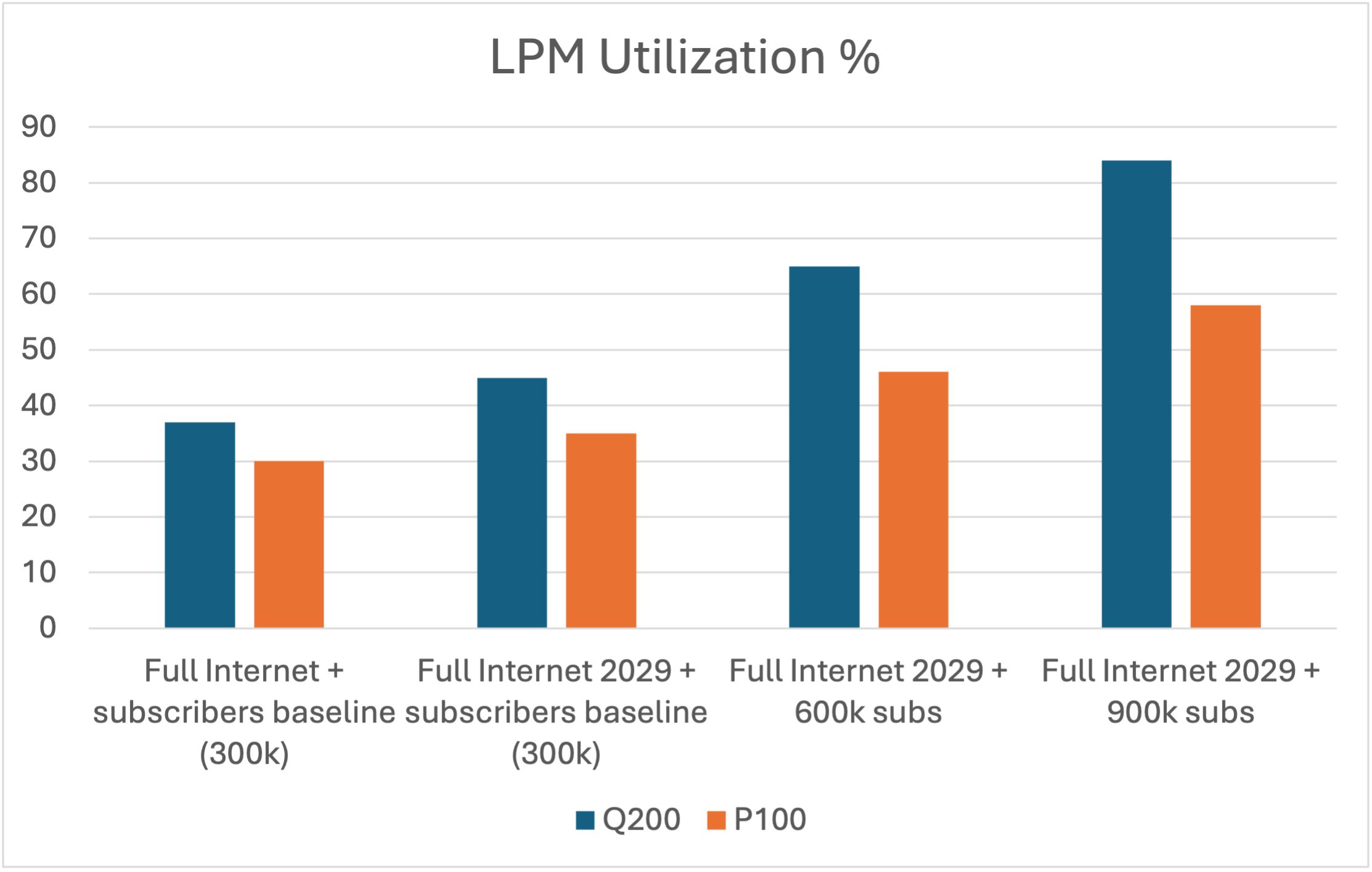

For a similar number of subscribers (900k) and with Internet 2029 profile, Silicon One P100 consumes 31% less LPM resources compared to Q200.

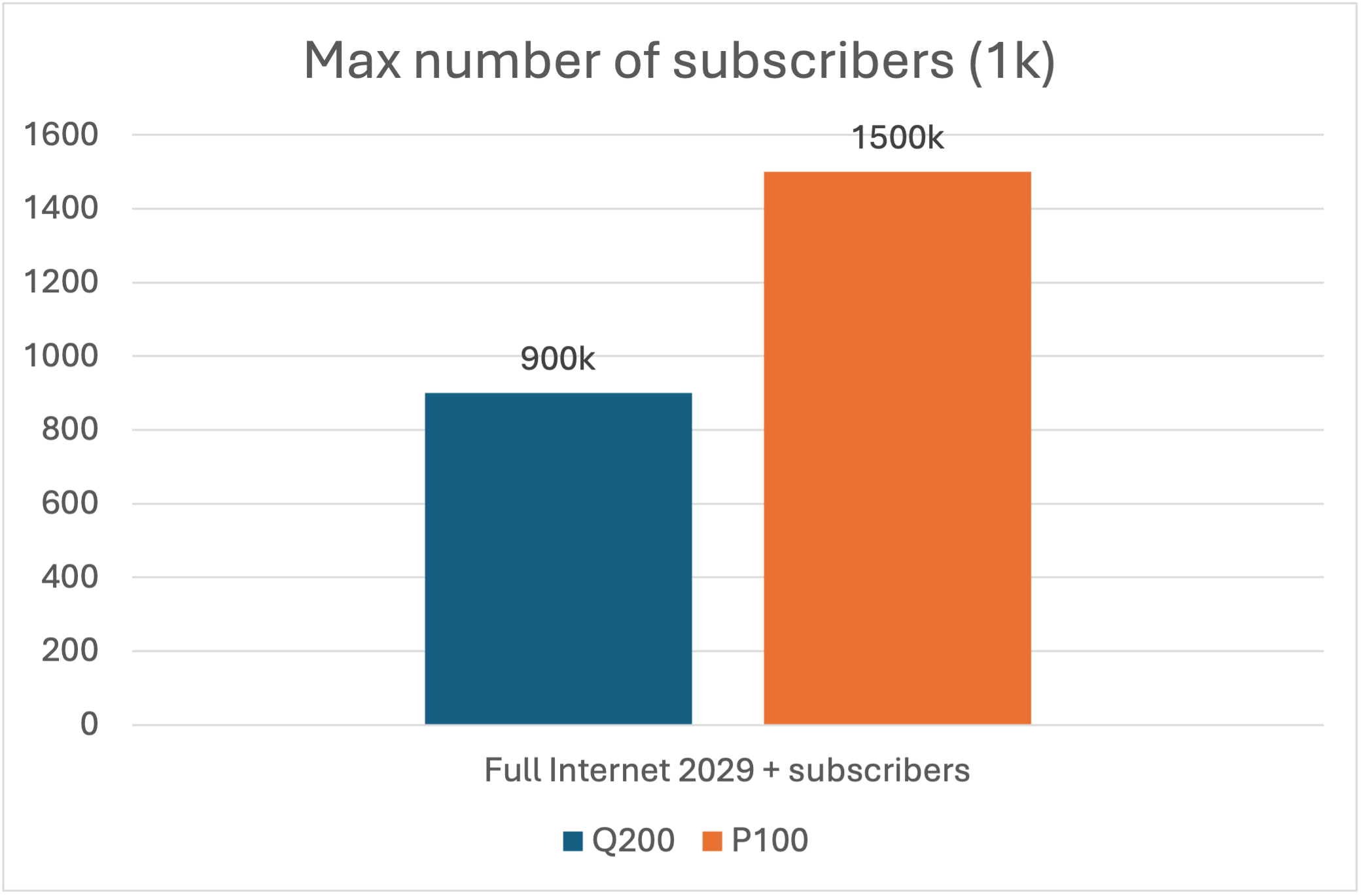

The last graph shows how many subscribers can be attached without reaching a critical LPM utilization threshold (85%):
For the same LPM utilization, Silicon One P100 can achieve 1.75x more subscribers compared to Silicon One Q200.
Conclusion
This article demonstrated the FIB scale capabilities of Cisco 8000 platforms based on Silicon One P100 ASIC. The results confirm the platform is future proof to accomodate not only Internet growth but also customers organic growth. Last, it covered a real-life use case and showed improvement made over previous generations of silicon.
